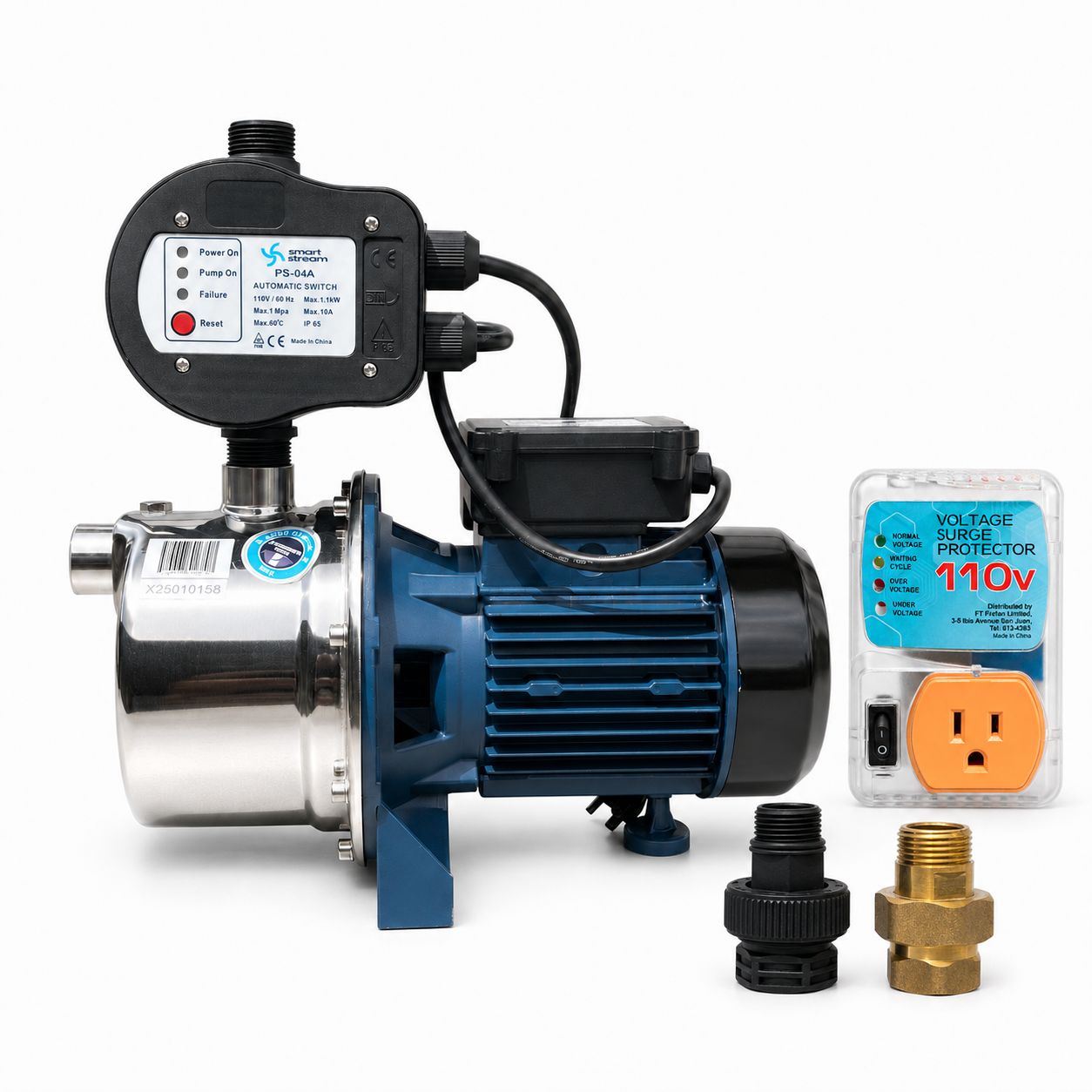

Smart Stream XJm81CE 0.8 HP Automatic Jet Water Pump with 110V Voltage Surge Protector

Improve water flow and pressure around your home or property with the Smart Stream XJm81CE 0.8 HP Automatic Jet Water Pump. This complete package includes a 110V voltage surge protector to provide added electrical protection for the pump.

Designed for household water supply, tank-fed systems, pipeline pressurization, garden watering and irrigation, the pump delivers a maximum flow rate of 50 litres per minute, a maximum head of 42 metres and a maximum suction lift of 9 metres.

The attached Smart Stream PS-04A automatic pump controller starts the pump when water demand is detected, such as when a tap is opened, and stops it when the tap is closed. This gives you convenient, on-demand water pressure without having to switch the pump on and off manually.

The automatic controller features Power On, Pump On and Failure indicator lights, along with a manual Reset button. The motor is rated for continuous duty and is thermally protected to help prevent damage caused by overheating during abnormal operation.

Included 110V Voltage Surge Protector

A separate 110V voltage surge protector is included with the pump. It is designed to help protect the pump’s electrical system by monitoring the incoming voltage before supplying power to the unit.

The protector includes indicator lights for:

• Normal voltage
• Waiting cycle
• Overvoltage
• Undervoltage

The built-in waiting cycle delays the restoration of power after an interruption or unacceptable voltage condition. This gives the electrical supply time to stabilize before the pump receives power again.

The voltage protector also includes:

• Grounded 110V outlet
• On/off rocker switch
• Clear status indicators
• Plug-in design for convenient connection

The surge protector provides an additional layer of protection, but the pump must still be properly grounded and connected to a correctly rated electrical circuit with suitable circuit and earth-leakage protection.

Recommended Applications

• Increasing household water pressure
• Transferring water from storage tanks
• Residential water-supply systems
• Pipeline pressurization
• Garden and lawn watering
• Agricultural irrigation
• Greenhouse watering
• Drawing clean water from shallow wells
• General clean-water transfer
• Small residential and light agricultural systems

Key Features

• Includes a 110V voltage surge protector
• Helps protect against overvoltage and undervoltage
• Voltage protector includes a power-restoration waiting cycle
• Automatic on-demand starting and stopping
• Maximum flow rate of 50 L/min
• Maximum head of 42 metres
• Maximum suction lift of 9 metres
• Powerful 0.8 HP single-phase motor
• Operates on 110V/60Hz power
• Continuous-duty motor
• Thermally protected motor
• Automatic controller with status indicators
• Manual Reset button
• 1-inch inlet and outlet connections
• Suitable for clean, non-corrosive water
• Compact surface-mounted jet-pump design

Pump Specifications

• Brand: Smart Stream
• Model: XJm81CE
• Pump type: Surface-mounted jet water pump
• Operation: Automatic with attached electronic controller
• Motor type: Single-phase
• Rated voltage: 110V AC
• Frequency: 60Hz
• Motor power: 0.6kW
• Horsepower: 0.8 HP
• Rated current: 7.6A
• Motor speed: 3,400 rpm
• Maximum flow rate: 50 L/min
• Maximum head: 42m
• Maximum suction lift: 9m
• Inlet size: 1 inch
• Outlet size: 1 inch
• Pump protection rating: IPX4
• Insulation class: Class F
• Capacitor: 35µF
• Capacitor voltage: 250V
• Duty rating: Continuous duty
• Motor protection: Thermally protected
• Maximum ambient temperature: 40°C
• Maximum liquid temperature: 40°C
• Recommended liquid: Clean, non-corrosive water without solid particles or fibres
• Recommended water pH: 6.5–8.5

Automatic Pump Controller Specifications

• Brand: Smart Stream
• Controller model: PS-04A
• Controller type: Automatic pump switch
• Rated voltage: 110V AC
• Frequency: 60Hz
• Maximum supported motor power: 1.1kW
• Maximum current: 10A
• Maximum controller pressure: 1MPa/10 bar
• Maximum controller liquid temperature: 60°C
• Controller protection rating: IP65
• Status indicators: Power On, Pump On and Failure
• Manual control: Reset button

Temperature notice: Although the automatic controller is rated for liquid temperatures up to 60°C, the pump manual specifies a maximum liquid temperature of 40°C. The complete system should therefore not be operated with water above 40°C.

Included Voltage Protector Details

• Product type: Voltage surge protector
• Rated voltage: 110V
• Connection: Grounded three-prong outlet
• Power control: On/off rocker switch
• Voltage indicators: Normal voltage, waiting cycle, overvoltage and undervoltage
• Purpose: Helps protect the pump against unacceptable incoming voltage conditions
• Quantity included: One

Automatic Operation

Once the pump has been correctly installed, filled with clean water and properly primed, the automatic controller monitors water demand.

Opening a tap causes a change in system pressure, prompting the pump to start automatically. When the tap is closed and water demand ends, the controller stops the pump automatically.

If the controller detects an abnormal condition, the Failure indicator may illuminate. After correcting the cause of the fault, the Reset button can be used to restart the system.

The pump must never be operated without water.

How to Use the Included Voltage Protector

• Ensure the pump and electrical circuit have been professionally installed.
• Plug the voltage protector into a properly grounded 110V outlet.
• Plug the pump into the grounded outlet on the protector.
• Switch the protector on.
• Observe the indicator lights before operating the pump.
• If the protector indicates overvoltage or undervoltage, allow it to interrupt power and do not bypass the protection.
• Following an interruption, wait for the waiting cycle to finish before the protector restores power.

The exact electrical installation should be checked by a qualified electrician.

Installation Requirements

Professional installation by a qualified plumber, pump technician or electrician is strongly recommended.

• Install the pump on a firm, level and stable base.
• Keep the pump in a dry and well-ventilated location.
• Protect it from rain, flooding and direct weather exposure.
• Do not immerse the pump in water.
• Keep the suction pipe as short and straight as practical.
• Minimize bends, elbows and restrictions in the inlet pipe.
• Do not use soft rubber tubing for the suction line.
• Seal all suction-side connections to prevent air leaks.
• Install an appropriate foot valve or non-return valve.
• Install a filter to help prevent particles from entering the pump.
• Keep the foot valve below the water level during operation.
• Position the foot valve above the bottom of the water source to reduce the intake of sediment.
• Use an inlet pipe that is at least as large as the pump’s 1-inch inlet.
• Use an outlet pipe that is at least as large as the pump’s 1-inch outlet.
• Completely fill the pump chamber and suction line with clean water before startup.
• Connect the pump to a properly grounded electrical circuit.
• Use appropriate circuit and earth-leakage protection.
• Use the included voltage protector as an additional layer of electrical protection.
• Keep the plug, voltage protector and electrical connections dry.

Actual pressure and flow will depend on the installation height, pipe diameter, pipe length, number of bends, condition of the water source and total system resistance.

Important Usage Information

This pump is intended for transferring clean, normal-temperature, non-corrosive water.

Do not use it for:

• Flammable or explosive liquids
• Gasoline, diesel or solvents
• Corrosive chemicals
• Sewage or wastewater
• Water containing sand, stones, fibres or other solid particles
• Saltwater unless specifically approved by the manufacturer
• Liquids above the pump’s stated temperature limit

What Is Included?

• Smart Stream XJm81CE 0.8 HP jet water pump
• Smart Stream PS-04A automatic pump controller
• 110V voltage surge protector
• Pump instruction manual

Installation pipes, valves, filters, fittings and other plumbing accessories are not stated as included unless otherwise specified at the time of purchase.

Frequently Asked Questions

1. Is a surge protector included?
Yes. A 110V voltage surge protector is included with the pump.

2. What does the included voltage protector do?
It monitors the incoming voltage and helps protect the pump against unacceptable overvoltage and undervoltage conditions. It also includes a waiting cycle before restoring power.

3. What do the lights on the voltage protector indicate?
The protector has indicators for normal voltage, waiting cycle, overvoltage and undervoltage.

4. Does the surge protector replace proper grounding and circuit protection?
No. It provides an additional layer of protection. The pump must still be properly grounded and connected to a suitable circuit with correctly rated protection.

5. Does the pump switch on and off automatically?
Yes. The attached Smart Stream PS-04A controller starts the pump when water demand is detected and stops it when demand ends.

6. How powerful is the pump?
The motor is rated at 0.6kW or 0.8 HP.

7. What is the maximum flow rate?
The maximum stated flow rate is 50 litres per minute. Actual flow will vary according to lift height, pipe size, pipe length and system resistance.

8. What is the maximum head?
The maximum head is 42 metres. Maximum head is not the same as the pump’s normal working pressure or flow. Available flow decreases as the required lift and pressure increase.

9. How deep can the pump draw water from?
The maximum stated suction lift is 9 metres under suitable conditions. Real-world suction performance may be lower due to pipe length, bends, air leaks and elevation.

10. Can it boost water pressure in a house?
Yes. It can be used for household pressure boosting when correctly sized and installed. Suitability depends on the number of outlets, required flow, pipework and source-water conditions.

11. Can it pump water from a storage tank?
Yes. It can transfer clean water from a suitable storage tank when the suction pipe, foot valve and fittings are correctly installed.

12. Can it draw water from a shallow well?
Yes, provided the water is clean and the suction requirements remain within the pump’s stated limits.

13. Does the pump need to be primed?
Yes. The pump chamber and suction line must be filled with clean water before initial startup. Never operate the pump dry.

14. What pipe size does it use?
The pump has a 1-inch inlet and a 1-inch outlet.

15. Is the pump waterproof?
No. The pump carries an IPX4 rating, which provides limited protection against splashing. It must not be immersed or directly exposed to heavy rain.

16. Can the included voltage protector get wet?
No. Keep the voltage protector, plug, outlet and all electrical connections dry and protected from moisture.

17. What does the Failure light on the automatic controller mean?
It indicates that the controller has detected an abnormal operating condition. Disconnect the power and check the water supply, priming, suction line, foot valve, filters and possible leaks before resetting it.

18. Can the pump handle dirty water?
No. It is designed for clean water without sand, stones, fibres or other solid particles.

19. Can it be used with hot water?
The pump manual specifies a maximum liquid temperature of 40°C. It is not intended to operate as a hot-water circulation pump.

20. Does it require a pressure tank?
The attached electronic controller provides automatic operation without a traditional pressure-tank arrangement for basic installations. System requirements vary, so a qualified installer should determine whether additional equipment is necessary.

21. Can it be installed outdoors?
Only in a properly protected, weather-resistant and well-ventilated enclosure. It should not be directly exposed to rain, flooding or constant moisture.

22. Does it operate on Trinidad and Tobago’s electrical supply?
The pump and included voltage protector are rated for 110V operation, while the pump operates at 60Hz. A qualified electrician should verify the circuit, grounding and protective devices before installation.

23. What should I do after a power interruption?
Allow the voltage protector to complete its waiting cycle. Do not bypass the protector or repeatedly switch the pump on and off while the voltage supply is unstable.

24. Should it be professionally installed?
Yes. Correct plumbing, priming, grounding and electrical protection are essential for safe and reliable operation.
